FSAE Bronco Motorsports Steering System
I designed, manufactured, and analyzed the steering system as the Steering Captain for the Formula SAE team at Cal Poly Pomona called BroncoMotorsports.
Rack Ratio is 3.75:1
Ackermann 90%

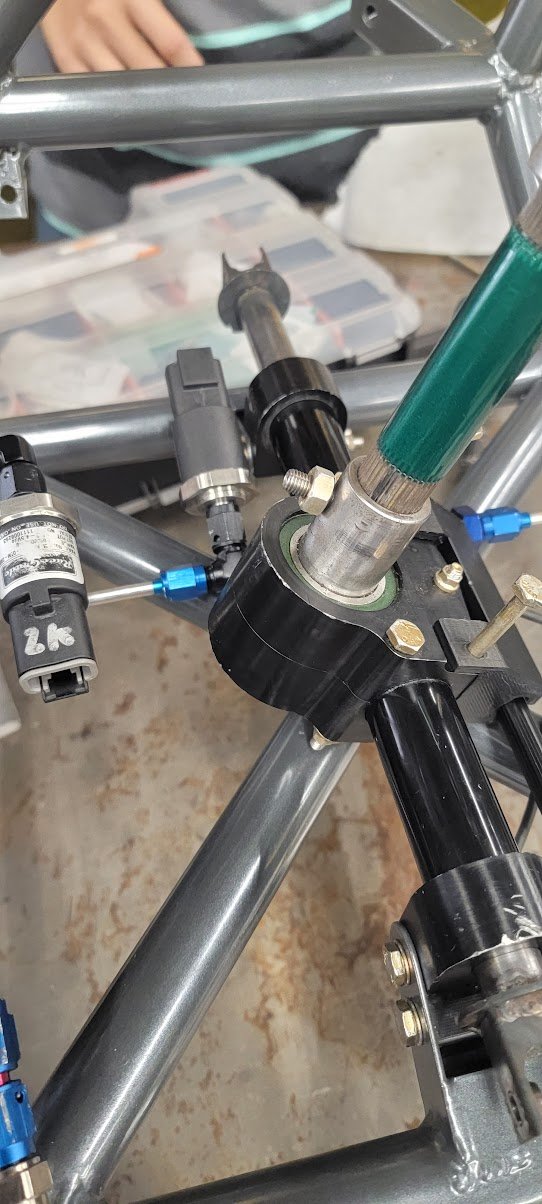

Rack and Pinion Steering System

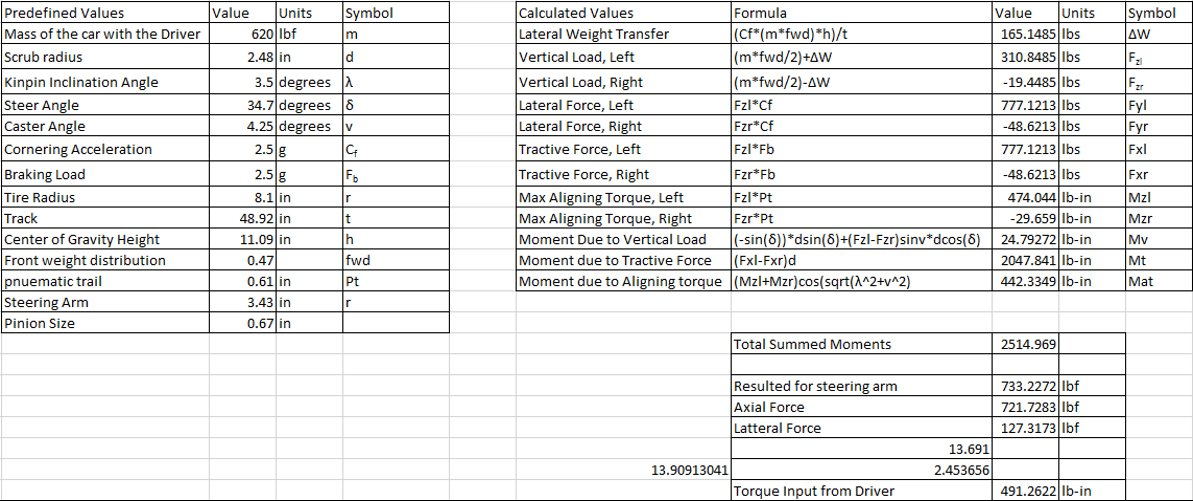

Rack and Pinion FOS 1.54 with the material being 4340 Steel the maximum force being 733 lbf

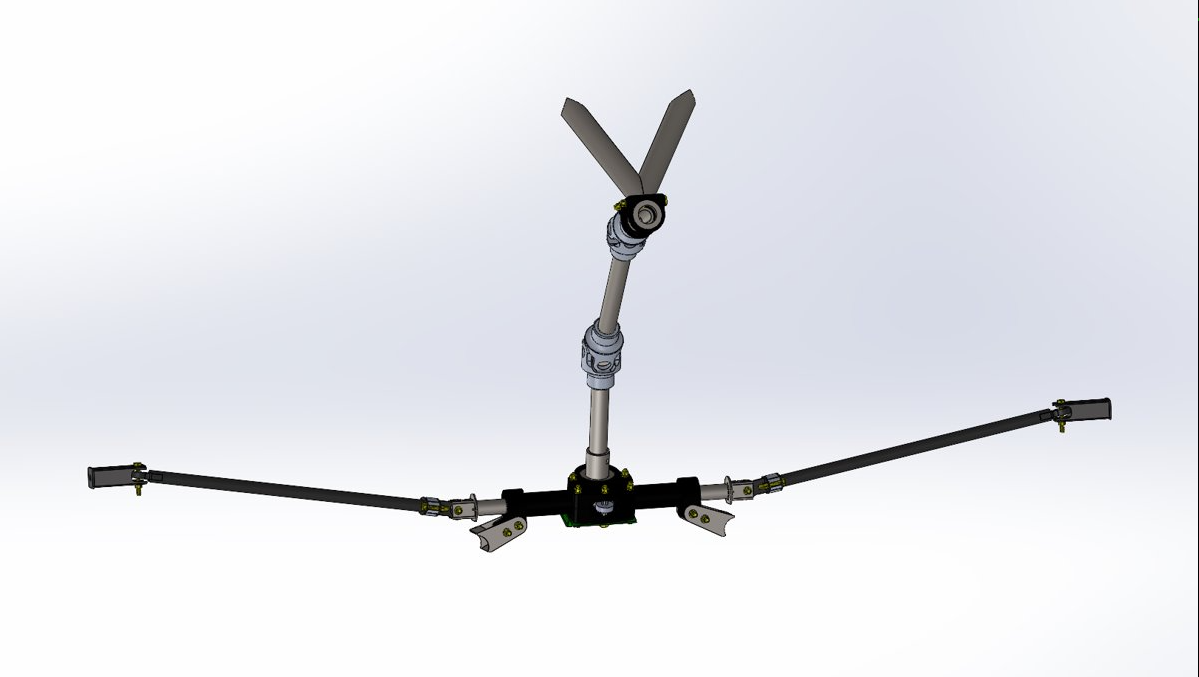

Overview of the Steering System Designed in SolidWorks
Skills
Vehicle Dynamics Analysis and Design

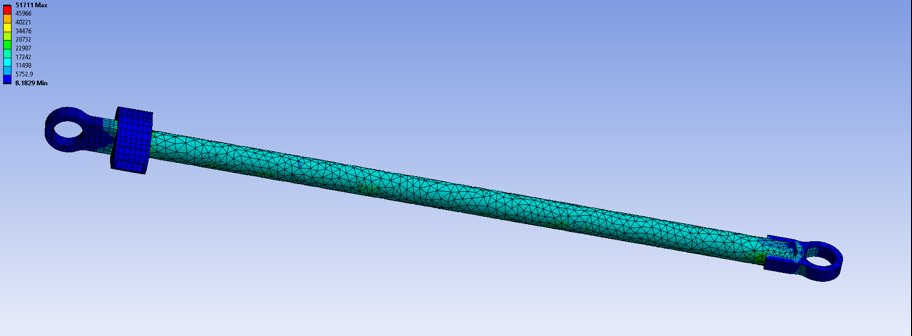

Finite Element Analysis using ANSYS
Engineering Drawings
Manufacturing (Lathes, 3D Printing)
Product and Mechanical Design using SOLIDWORKS
